NOVOFLEX II - CUTTNG EDGE PRESS TECHNOLOGY
The NOVOFLEX II offers best print quality and highest output even at most demanding jobs.
- Center-force printing deck design to eliminate bounce
- Automated bearing blocks for fast and operator friendly sleeve change

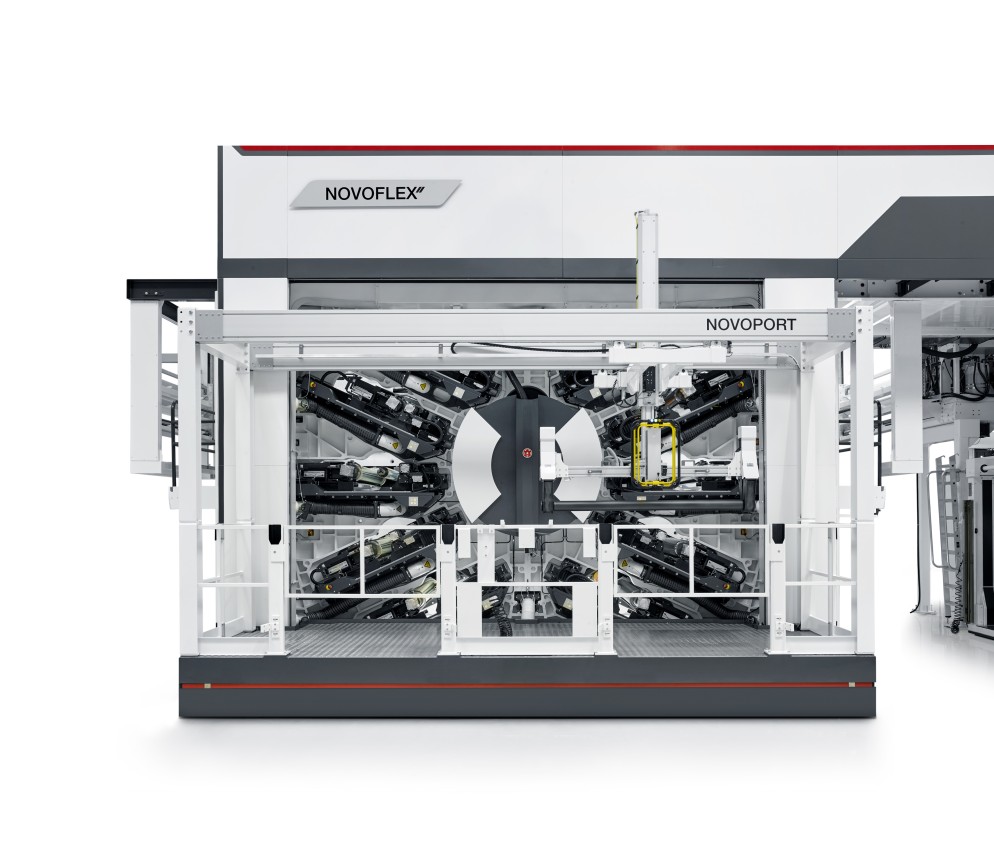

- NOVOPORT and NOVOPORT ADVANCED for automated fast and safe change of wide format bridges and sleeves
- Innovative ink chamber design for faster exchange of blades and side-seals
- TURBOSEAL with up to 10x longer side-seal lifetime
- Most efficient inking and wash-up system TURBOCLEAN ADVANCED with diaphragm or electric pumps
- EASY-Automation modules for impression and register setting as well as color matching
Technical Data
TECHNICAL SPECIFICATIONS
| NOVOFLEX II M | NOVOFLEX II L | |
| Color Decks | 8 / 10 | 8 / 10 |
| Print Widths | 1000 / 1270 / 1450 mm (39.4" / 50" / 57") | 1270 / 1450 / 1650 mm (50" / 57" / 65") |
| Repeat Length | max. 800 mm (31.5") | max. 1250 mm (49.2") |
| Press Speed | 500 / 600 m/min (1640 / 1960 ft/min) | 500 / 600 / 800 m/min (1640 / 1960 / 2620 ft/min) |
