At a Glance
Product information

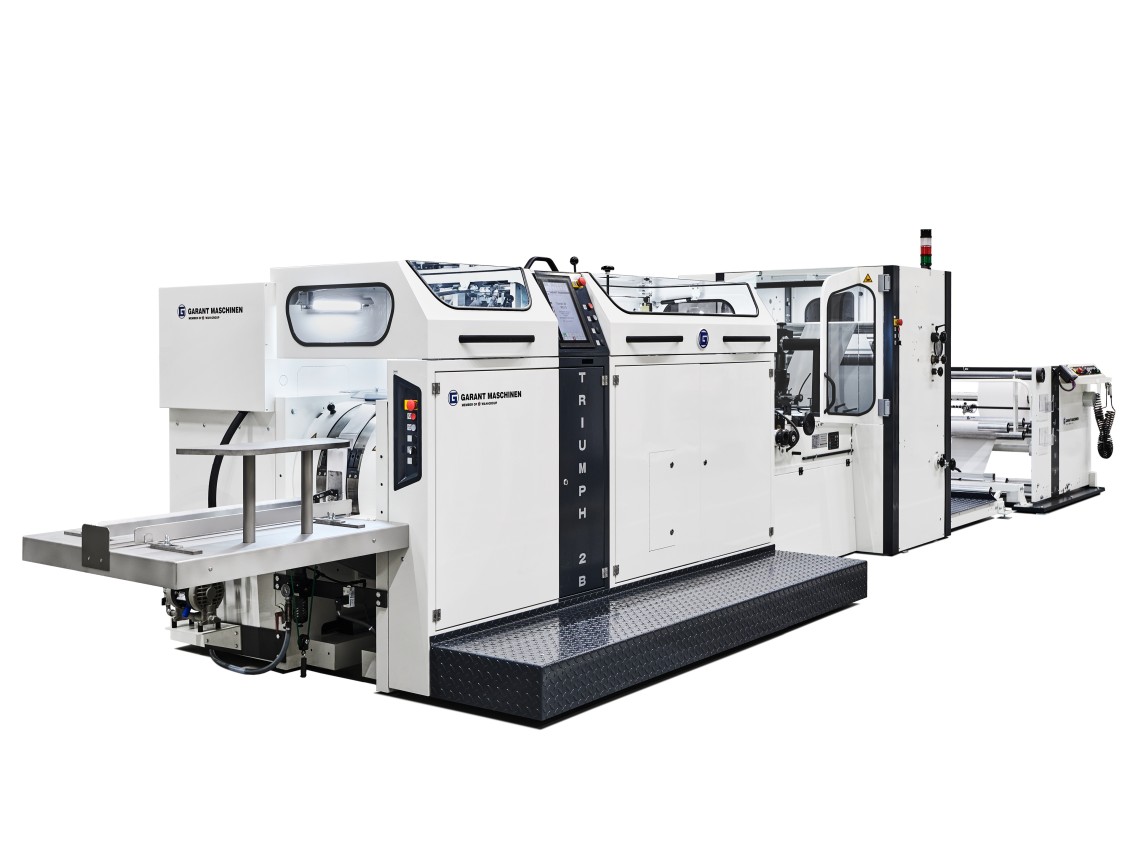

The TRIUMPH 2B is a block bottom bag machine which is particularly suitable for the production of small format block bottom bags.GARANT has continuously further developed the TRIUMPH 2B and optimally adapted it to the growing requirements of the market. Its current equipment and the still exemplary robust design make the TRIUMPH 2B the most popular machine for the production of small-format block bottom bags even today.
Technical Data
Format ranges
| Bag width | 70 - 230 mm | 2.76 - 9.06 inch |
| Bottom width | 40 - 140 mm | 1.57 - 5.51 inch |
| Cut-off length | 200 - 470 mm | 7.87 - 18.50 inch |
| Roll width | max. 770 mm | max. 30.31 inch |
| Roll diameter | max. 1300 mm | max. 51.18 inch |
